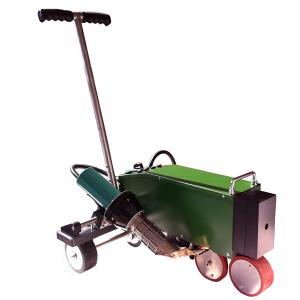

hot wedge welders: Bosie-800
Wedge Welder uses a heated platen inserted between 2 or more thermoplastic materials to fuse or heat seal the plastics. Movement is translational. Heat sealing is caused by following the heated platen (or heated wedge) with a roller pressure means.
The welder can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC,HDPE, EVA, PP.extensively used in engineering projects such as expressways, tunnels,reservoirs, waterproof of construction and so on
|
Product name
|
hot wedge welder
|
|
Model number
|
BST-800
|
|
Related Voltage
|
220V
|
|
Related Power
|
800W （can tailor made 1100W and 1600W)
|
|
Frequence
|
50Hz
|
|
Temperature
|
0-450 degree
|
|
Welding material thickness
|
0.2-2.0mm
|
|
Overlap width
|
100mm
|
|
Welding speed
|
0.8-6m/min
|
|
Welding width
|
12.5mm*2,interior cavity 12mm
|
|
Seam strength≧85% base material
|
(tensile resistant in shear direction)
|
|
Marking of conformity
|
CE
|
|
Net weight
|
4.8KGS
|
|
Protection class
|
回
|
