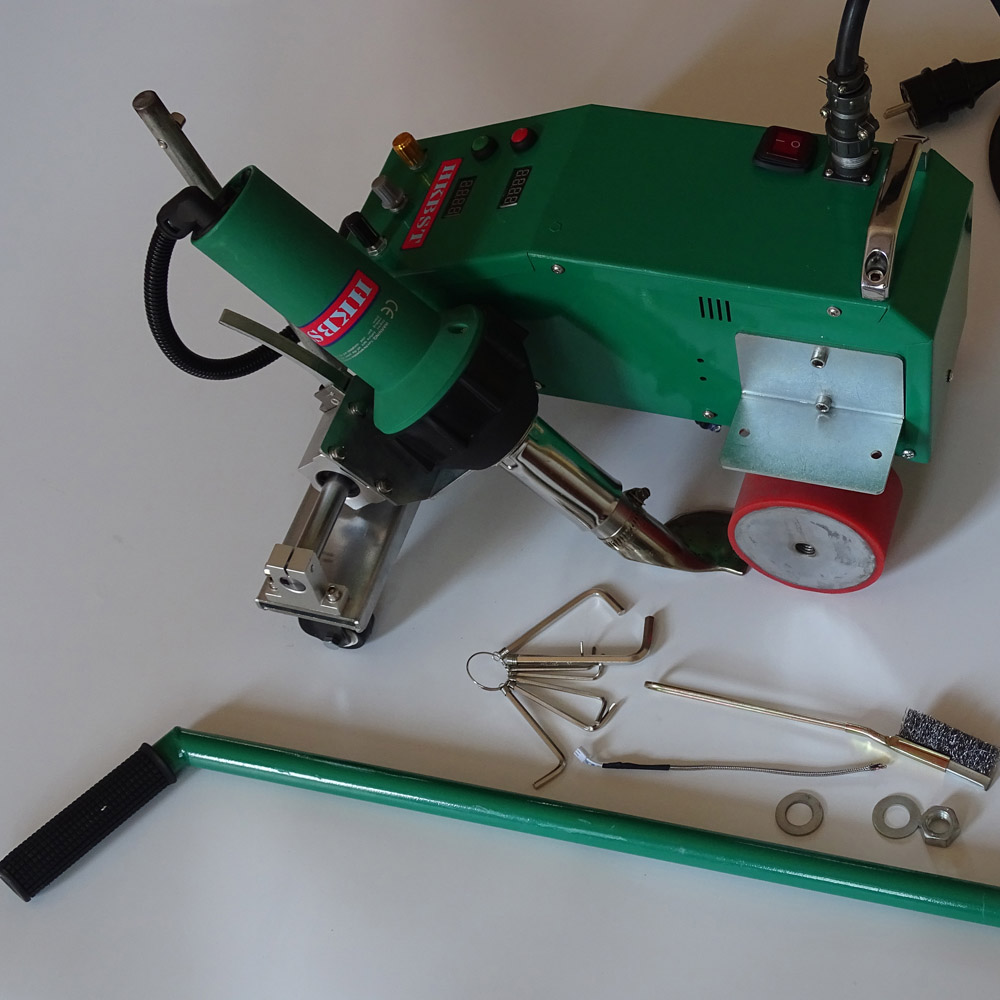

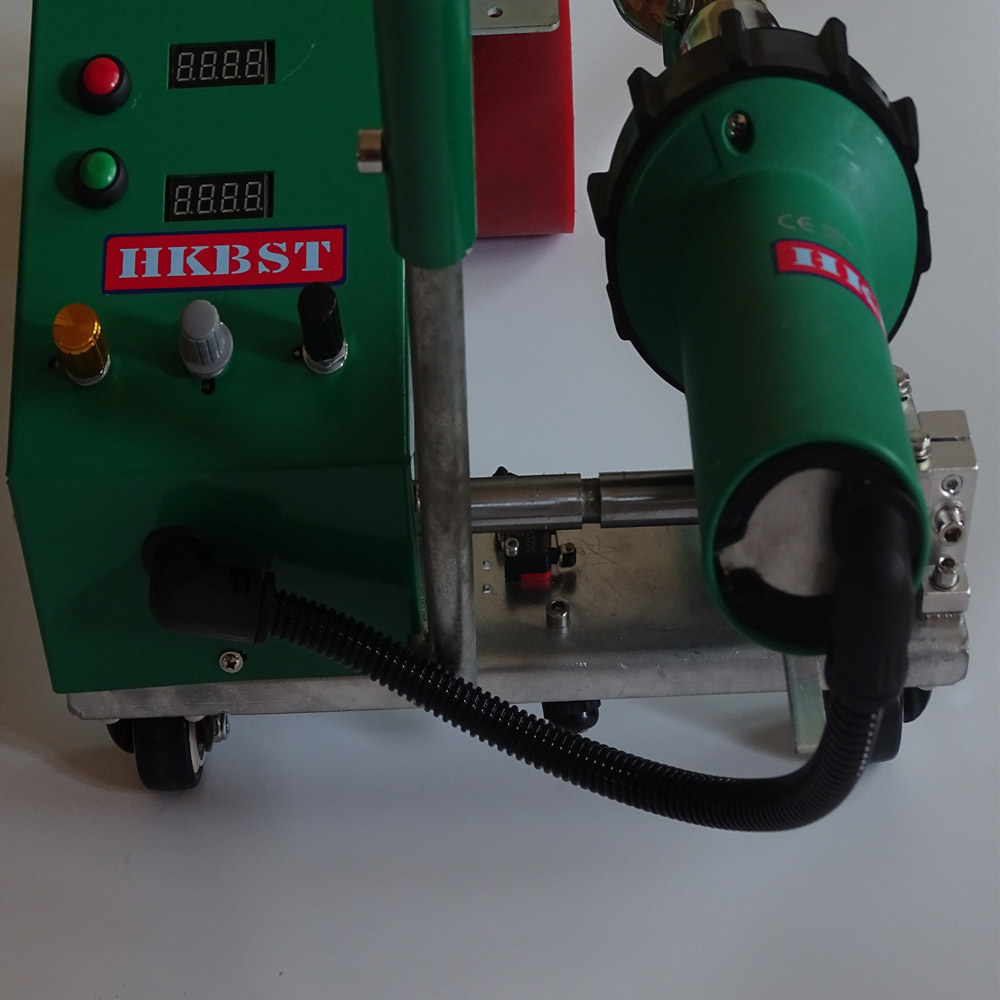

hot air banner welder: Bosite-K1
the hot air banner welder is widely used for printing cloth,Mesh, Daogua cloth, tarpaulin, waterproofing membrane and other material that can be hot melt.
1、Equipped with high quality HKBST heat gun. CE certified product.
2、Adopt the digital constant temperature technology.Its temperature fluctuation in ±1℃.Welding result is perfect.
3、Temperature range :20℃-650℃.
4、Welding width:2cm-4cm
5、welding thickness:0.02-2mm
6、Welding speed :1m-12m/min
7、speed motor is DC motor, walking uniform, regardless of the input voltage of change
8、Power:1600W
Usage filed:
It is widely used for printing cloth,Mesh, Daogua cloth, tarpaulin, waterproofing membrane and other material that can be hot melt.
Technical Data
220V/50HZ/1600W
Welding temperaure : 20-650 degree
Welding speed : 1.5-12m/min.
The thickness of material to be weld :0.2-2mm
Applicable material : PVC material ,flex banner , advertisement material ,etc.
Operation:
1. Make the cloth for seaming flat and put it underneath.Fix both ends by adhesive tape or something else.
2. The overlap width of the two pieces is about 3-mm, the width of the nozzle of hot seaming machine.
3. Put the machine nozzle between two overlap pieces.The press-wheel should be at left side of nozzle.The nozzle also need align with side of upper piece of cloth.
4. Switch on the motor power and then adjust speed.
5. Turn on the movement switch.
6. Press heating power key to adjust temperature.
7 Turn the bar by anticlockwise to fix the position to startup automatic movement.The machine will go along with the overlap path by itself.
8. Turn the bar by clockwise to cease the automatic work.
9. The operator should control the moving direction and make sure the nozzle connect both with upper and under piece of cloth.
